Short Throw Lock Bundles

Product Catalogue

Short Throw Lock Bundles

• Hardened steel bolt
• 6 pin C4 cylinder accepts restricted barrels

Features:

  • Available in 22mm bolt projection for hinged single doors or 37mm bolt projection for hinged double doors
  • Case size 181mm H x 37mm D
  • Includes mounting hardware
  • Available in satin chrome and black finish





Category:
Downloads
4.11 Commercial Door Hardware
Part Numbers of
Product code Description Finish
V59022CT V59022(Mortice Lock)+V570ESC(Escutcheon)x2+V570SP(Oval Cylinder)+V570TSP(Oval Cylinder with Turn) Satin Chrome

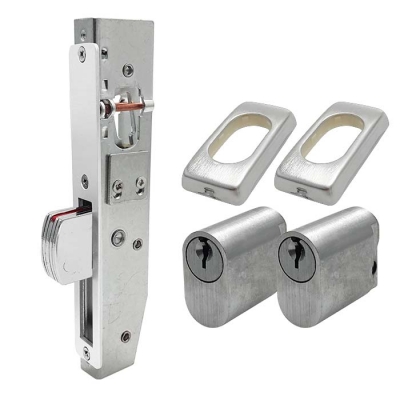

V59022DC V59022(Mortice Lock)+V570ESC(Escutcheon)x2+V570SP(Oval Cylinder)x2 Satin Chrome
V59022CT V59022 BLK(Mortice Lock)+V570ESC BLK(Escutcheon)x2+V570SP BLK(Oval Cylinder)+V570TSP BLK(Oval Cylinder with Turn) Black
V59022DC V59022 BLK(Mortice Lock)+V570ESC BLK(Escutcheon)x2+V570SP BLK(Oval Cylinder)x2 Black
